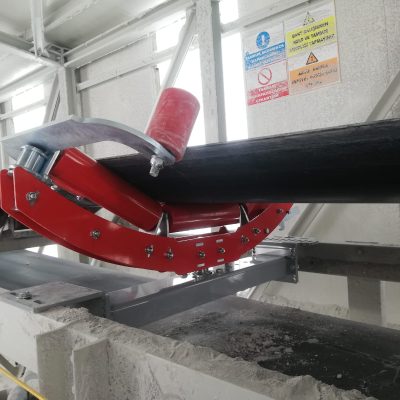

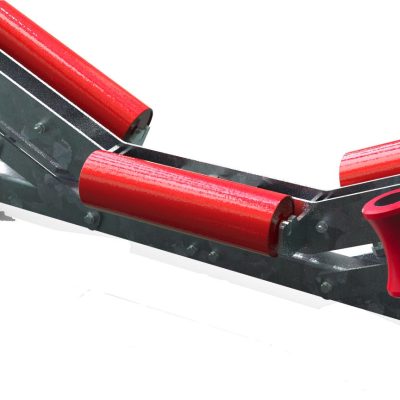

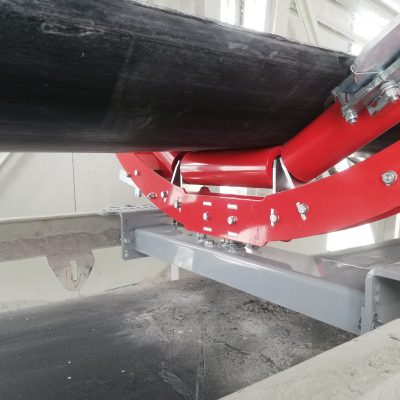

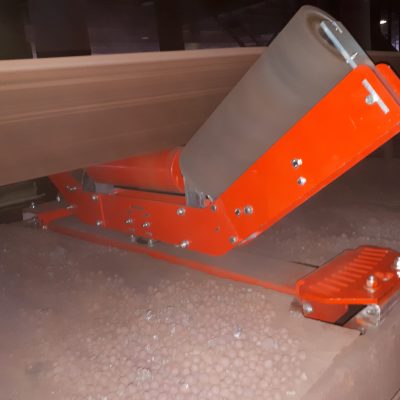

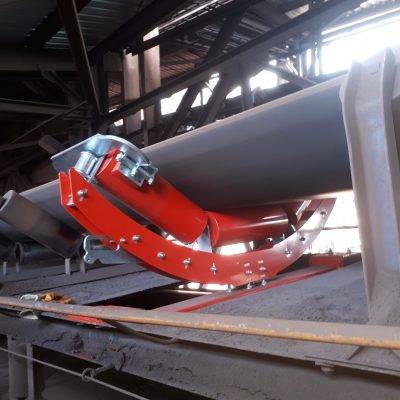

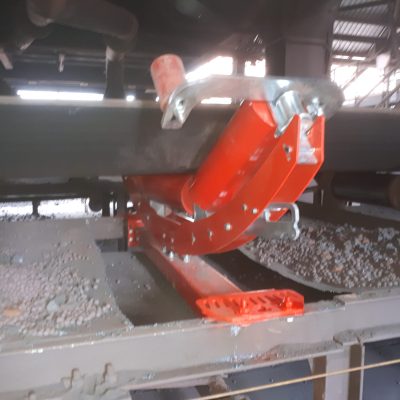

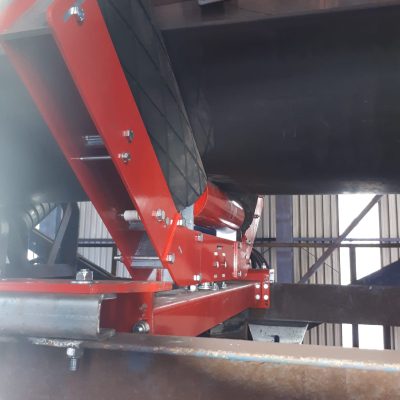

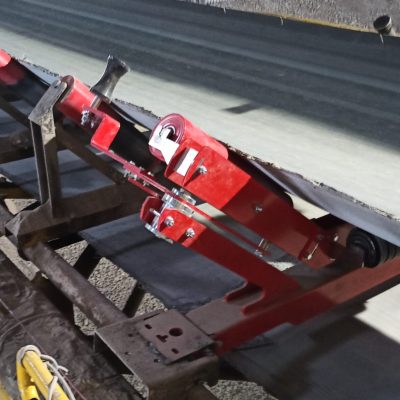

Centroll® Automatic Upper Tracking System
Automatic Upper Tracking Systems are designed to prevent your conveyor belt from decentering during transfer. Thanks to their design, they can be easily integrated into the existing system. In cases where the belt is decentered, the polyurethane guide roller guiding mechanism is activated and instantly centers the belt without damaging the belt.
It is much more effective, efficient and faster than conventional trackers…
The working principle is briefly as follows:
It has a large contact surface. This feature allows the belt to respond in a more effective way in case it is decentered
“Crab Automatic Upper Traking System” helps change the center of gravity on the decentered belt and alsohelps the steering mechanism to be activated by hitting the polyurethane guide roller. The guiding mechanism moves the centralizer from the pivot point in its center in the direction of its horizontal axis, thus centering the band quickly and abruptly.
The guide rollers used are made of polyurethane material and are designed not to damage the edges of the belt. The response time can be adjusted by moving the guide rollers closer and further away from the band as desired.
Our Different Top Centering Models
Automatic Top Centerer Advantages
Size Information
Downloads
Our Different Top Centering Models
Automatic Top Centerer Advantages
Hızlı ve kolay montaj
Kompakt tasarım
Tüm bantlara uygulanabilirlik (çift yönlü bantlar hariç)
Toz sızdırmaz yapı
Geniş kullanım alanı (B=500-2000 mm)
Yükseklik ayarı
Şase delik merkezi ayarı
Banda zarar vermeyen poliüretan kılavuz ruloları
Özel sabitleme sistemi sayesinde gerekli durumlarda manuel merkezleme
Size Information
Downloads
